e-CLAM PRO 2POS
the e-Clam Pro 2POS has double position for switching from high to low pressure without touching the pressure wheel
It is suitable for medium-volume textile marking, in particular textile sublimation, on rigid substrates (aluminum, MDF, wood, porcelain, etc.), for drying pre-treatment and inks in direct printing, and for laser printing.
 |  |  |  |  |  |
| Type | Electromagnetic |
| Operation | Slide - Tray with drawer, Clam - Portfolio Opening |
| Platen size | 40x50 cm / 16x20 " |
| Max thickness | 15 mm |
| Weight | 58 Kg / 128 lbs |
| Pressure | 330 g/cm² |
| °C / °F Max | 220 °C / 429 °F |
| Power | 2200W |
| Power supply | 240 V Single-phase + Neutral + Ground |
| Amperage | 10A |
| Applications | Flex, Direct to Garment, Pretreatment, Sublimation Rigid Substrate, Textile Sublimation, Laser Transfer, Screen Printing |
| Dimension | 993x973x455 mm / 39x38x17 " |

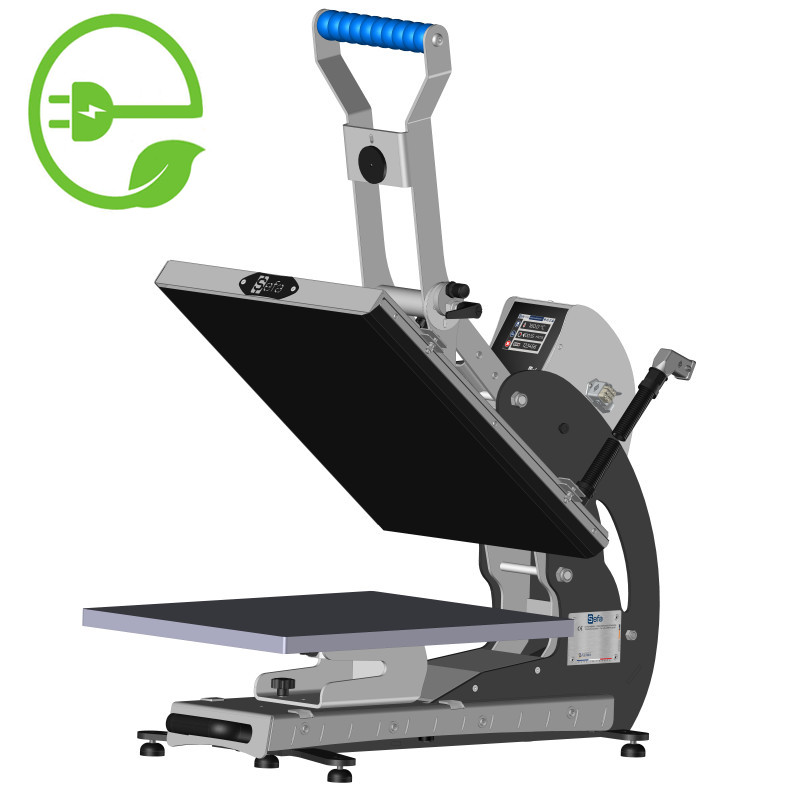

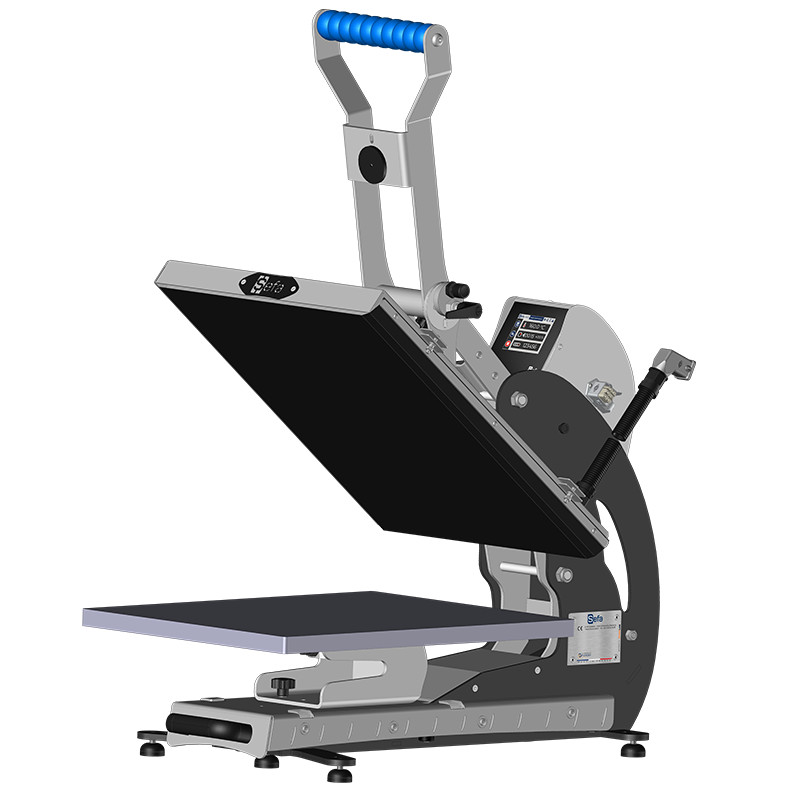

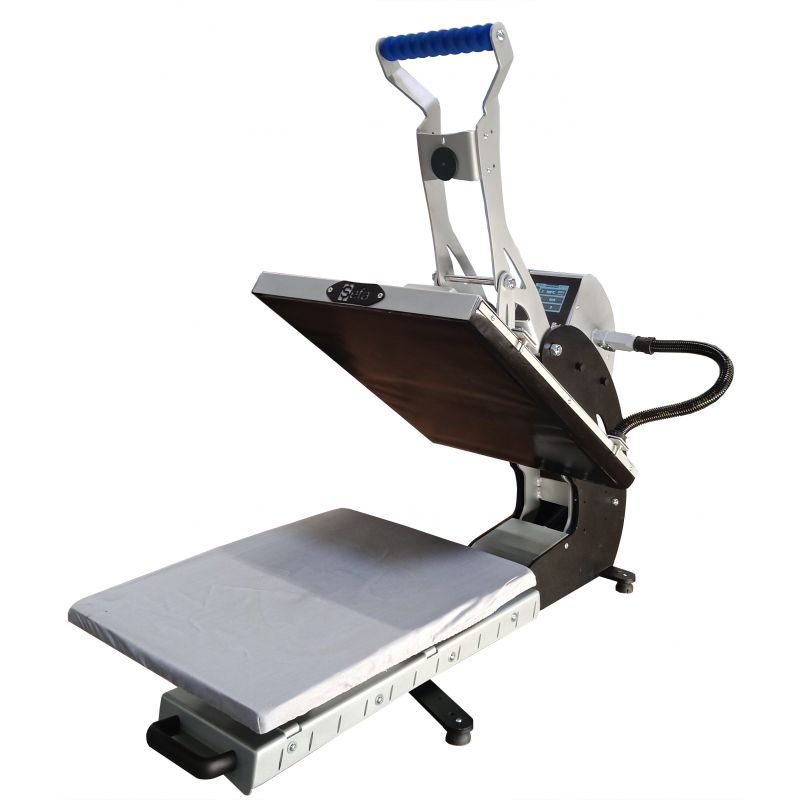

Auto-open heat transfer press with drawer-type lower plate.
Strengths:
- Auto-open
- Quick-change platens
- T-shirts threaded from front or rear of the plate
- Pre-heat time programmable
- Dual item counter
- Double position option for switching from strong to light pressure without touching the pressure knob
- Designed and manufactured in France
- Two-year machine warranty
- Ten-year warranty on heating elements
Electronics:
|  |
SHOE PLATE40x50cm / 16x20" shoe platen. KIT-QR 1 included.
- DRYING PLATE
Sponge foam platen of 40x50cm for easy pre-treatment drying during DTG (...)
- PLATES SET
Set of 4 Quick Release / standard plates.
- STANDARD PLATE
Lower platen. KIT-QR 1 included.

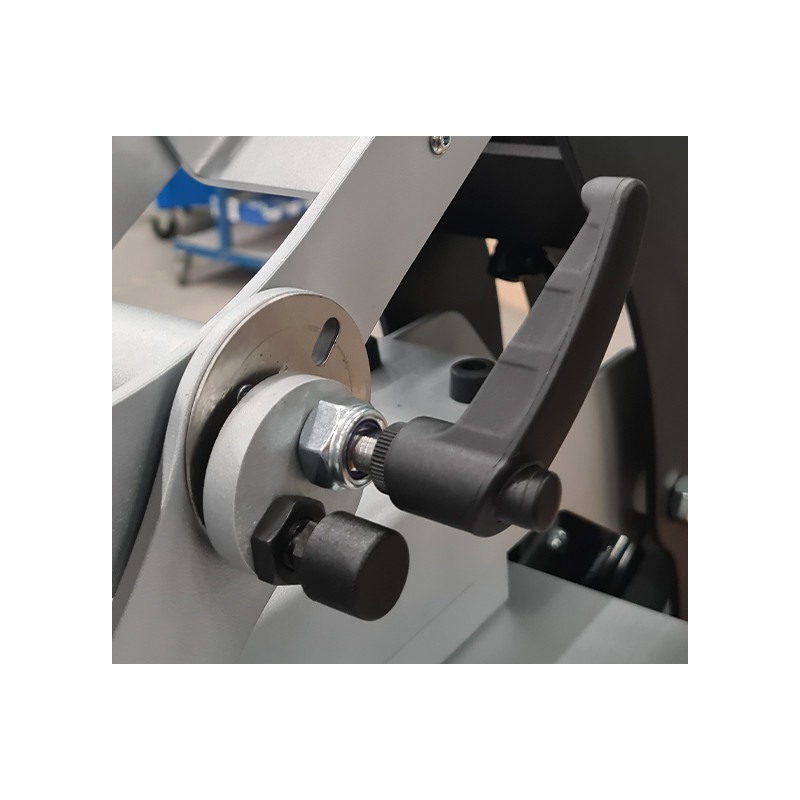

- DOUBLE POSITION ACCESSORY CLAM PRO
Clam Pro GPX DTG option that allows to go from strong pressure to dry the (...)
- SUPPORT TABLE
Support table for presses (except Duplex and Slide models).
