e-CLAM PRO

e-CLAM PRO

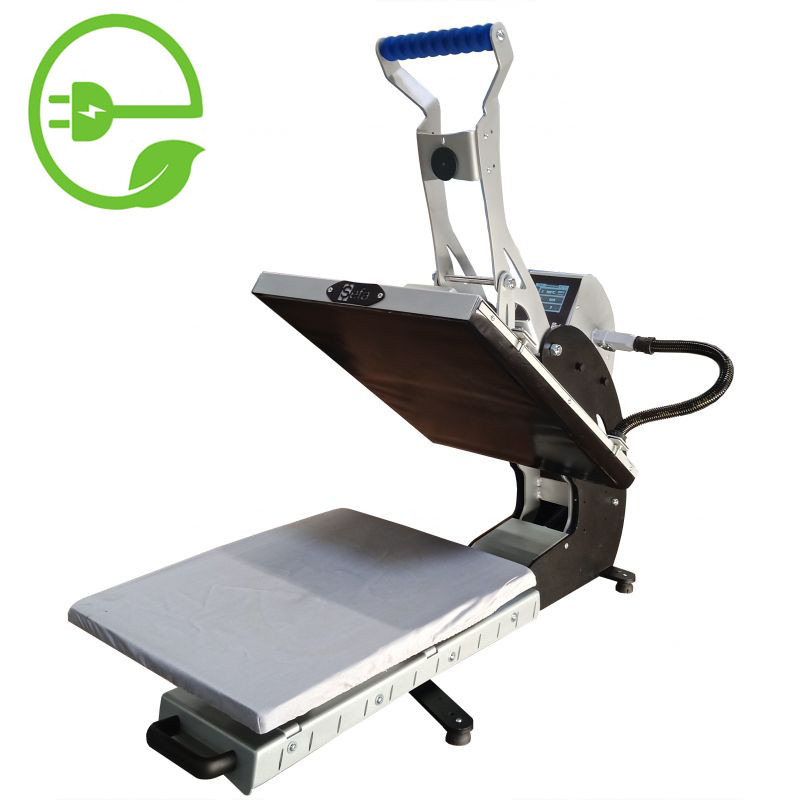

Originally created for applying flex and screen printing transfers in sports shops, the e-Clam Pro is also suitable for medium-volume textile marking runs, textile sublimation, rigid substrates sublimation (aluminium, MDF, wood, porcelain, etc), and laser printing.

Information

DATASHEET e-CLAM PRO

TypeElectromagnetic
OperationClam - Portfolio Opening
Platen size40x50 cm / 16x20 "
Max thickness15 mm
Weight58 Kg / 128 lbs
Pressure330 g/cm²
°C / °F Max220 °C / 429 °F
Power2200W
Power supply240 V Single-phase + Neutral + Ground
Amperage10A
ApplicationsFlex, Direct to Garment, Pretreatment, Sublimation Rigid Substrate, Textile Sublimation, Laser Transfer, Screen Printing
Dimension993x973x455 mm / 39x38x17 "

Automatic opening heat press with sliding lower platen.

40x50 cm Nomex® cover included.

Key features:

  • Automatic opening
  • Quick-change platens
  • T-shirt loading from the front or the back of the platen
  • Programmable pre-heating time
  • Dual piece counter
  • Designed and manufactured in France
  • 3-year warranty on the machine
  • 10-year warranty on the heating elements

SEFA Electronics:

  • Touchscreen developed by SEFA
  • Fast and precise regulation (PID control)
  • Adaptive regulation depending on the application: flex, textile sublimation, rigid substrates, DTG
  • Fully editable recipes
  • Multi-timer (up to 2 independent timers)
  • Cycle counter
  • Stop cycle function
  • ECO mode
  • Time range: from 0 to 60 minutes (precision ±1%)
  • Temperature range: from 15 to 220°C (precision ±1%)
  • Heating time to reach 180°C: 12 minutes
SEFA touchscreen
